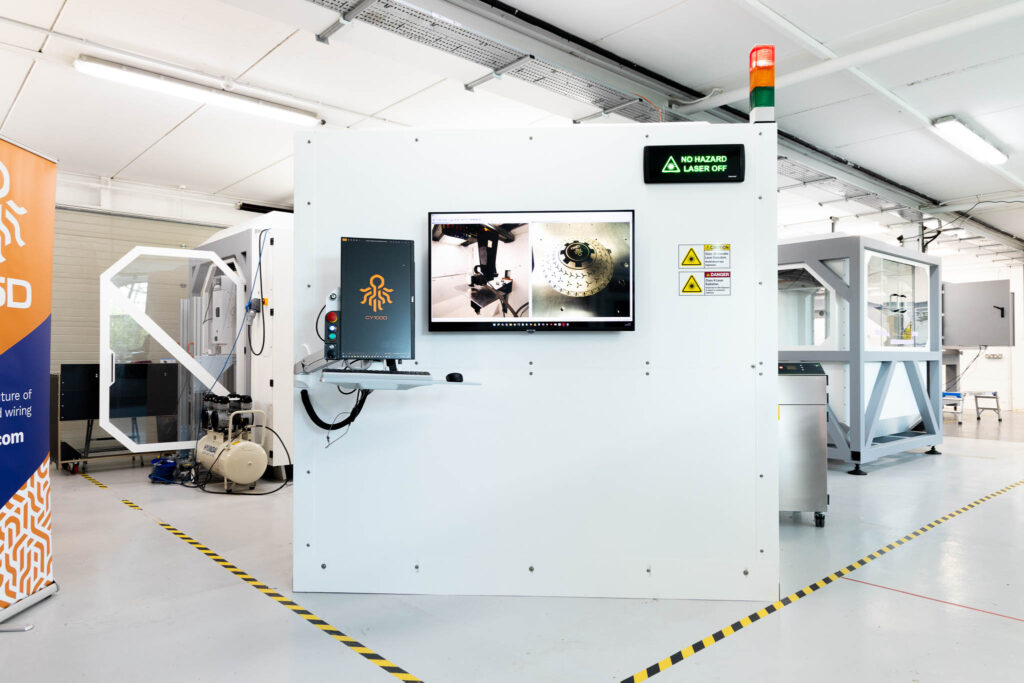

CY10L
Printed electrical circuits

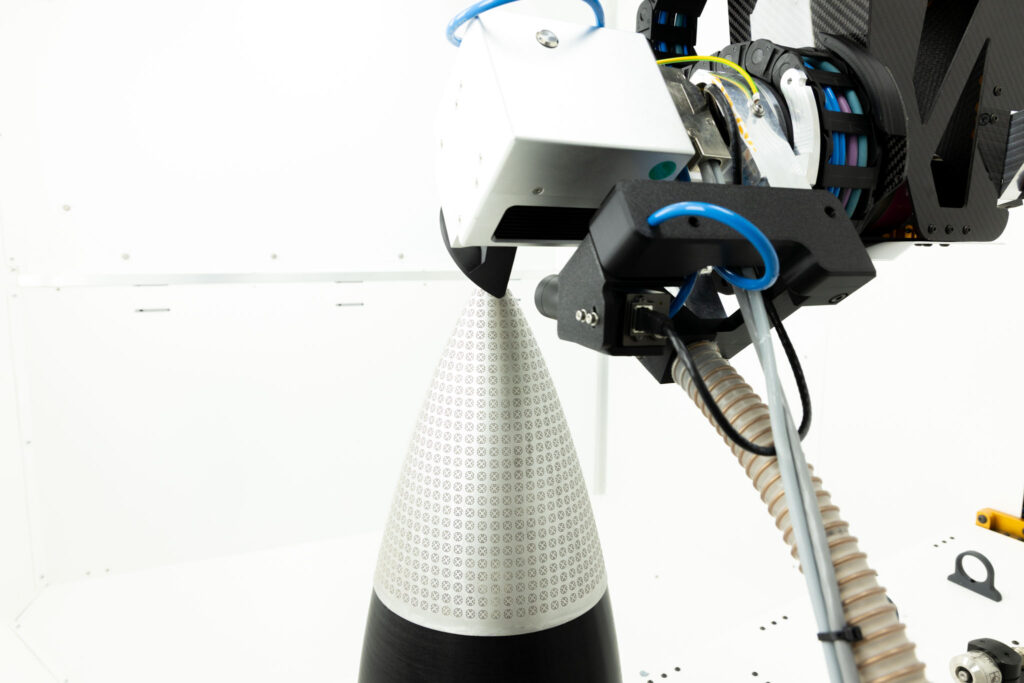

Focused on the addition of printed circuits to non-planar surfaces
Machine Size
| Length | 3066mm |
| Depth | 2347mm |
| Height (inc STATUS) | 2840mm |
| Weight | 2500kg |
Build Envelope
| Cylinder Diameter | 1000mm |
| Height | 500mm |
| Max. Part Weight | 40kg |
Service Clearance
| Above | 200mm |
| Front (HMI) | 1000mm |
| Rear (Services) | 1000mm |
| Right (Load) | 1200mm |
| Left (Glue Access) | 1000mm |
| Floor Loading 4 Pads Ø170mm | 625kg each |
Operating Environment
| Temperature Range | 20-25 °C |
| Humidity Range | 40-60% Relative |
| Electrical Source | 240V AC (+6% / -10%), 50Hz |
| Compressed Air | 6BAR |
Core Functions
| 5-Axis Motion Platform |
| Integrated HMI plus Build Envelope Monitor |
| 3 Toolchange Positions |
| Laser Distance Measure |
| Vacuum Fixturing |
| Extraction |
| Class 4 Enclosure |
| 100W 1064nm Fibre Laser |
Designed to integrate with
| Automated Load/Unload |
| Automated QA/QC Systems |
| Tool head camera |
End Effector Selection
| HLGVA1 – Laser Head with Scanner |
| HI14A2 – Insulated Wire Deposition 1.4mm OD |
| HI16A2 – Insulated Wire Deposition 1.6mm OD |
| HPADA2 – Polymer Head 400 to 20,000 mPas@200° / 392°F |
| HTI1A2 – IDC Press 550N with Hex Tool Holder |
| HPT1A1 – Probe Head ±2µm |
Deposition range and type constantly evolving
| Paste Deposition End Effector |
| Spray Deposition End Effector |
| Deposition type and integrations subject to TAC assessment |
| Typical Package |
|
| Additional Options |
|
| Typical Package |
|
| Additional Options |
|
SPECIFICATIONS AND SERVICE OFFERS ARE FOR REFERENCE ONLY. CONTRACTED AGREEMENTS TAKE PRECEDENCE.
